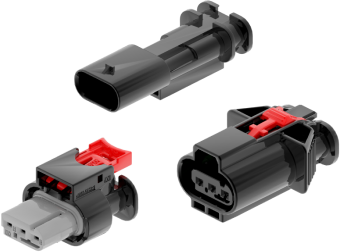

CTS 1.2 Sealed Connection System:
The Premier Interface in the Automotive Industry Today
CTS 1.2 SensoMateTM Series Benefits
VDA/USCAR 1.2mm interface compatible
Industry-standard 1.2mm terminal cavity compatible
Two designs available: Short shroud for reduced packaging; Long shroud for easy mating to devices
CTS 1.2 SensoMateTM Series Overview and Performance
MAX VIBRATION: SINE (G)
42
MAX TEMPERATURE (°C)
-40 to +150, up to +175
SEALING IP (IEC / ISO)
68, xK9
AVAILABLE CAVITY CONFIGURATIONS
2, 3, 4, 6 / Male (2-4W only)
TPA
Independent Secondary Lock (ISL)
APPLICATIONS
Chassis, Engine Compartment, On-Engine-Mount, Harsh Gearbox Applications, Sensors/Actuators
More on CTS 1.2
CTS 1.2 Part Numbers
o Visit Aptiv’s e-catalog to find the part number for the connector that best fits your needs and get access to Aptiv’s technical and CAD drawings.

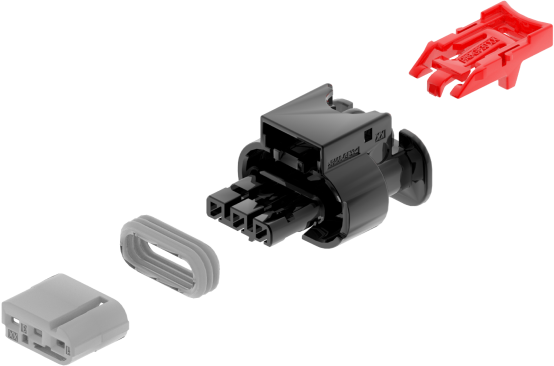

CTS 1.2 SensoMate Connectors
What connector miniaturization means for automotive
Learn about connector miniaturization challenges while optimizing performance and cost
