Aptiv Automotive Data Connectivity Component Family
To enable seamless transmission of data for applications such as radars, lidars, cameras and other sensors, we’ve developed a robust line of high-speed cable assemblies. We also offer a complete portfolio of headers, terminals and cable assemblies. Aptiv data connectivity solutions bring our legendary reliability and performance to this continually evolving product portfolio. We offer multicore, coax 1-wire and UTP/STP 2-wire links to address OEMs connectivity requirements, as well as hybrid connection systems that
deliver both power/signal and data.

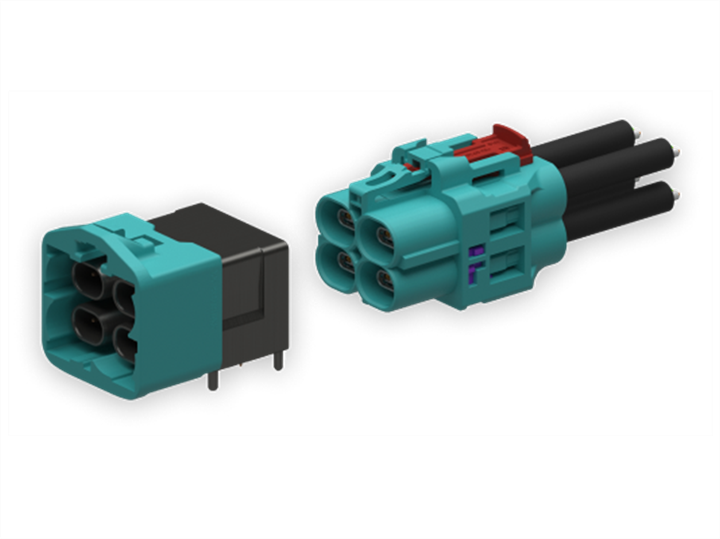

H-MTD®
High-Speed Modular Twisted-Pair Data
High-Speed Modular Twisted-Pair Data (H-MTD®) is a connector system that supports frequencies up to 20 GHz and data transmission rates up to 56G bit/sec. Vehicles are adding high-resolution radars and cameras to support ever more sophisticated automated driving capabilities, creating high-bandwidth streams of data to centralized computing platforms. To accommodate these emerging requirements, the industry is moving to network technologies such as Automotive Ethernet and MIPI A-PHY, a new physical-layer interface for in-vehicle data transmission. H-MTD® addresses those challenges, offering shielded and cost-effective unshielded versions.
MCA
Mini Coax Automotive
New mobility requires a multiplication of high speed data devices. Coaxial data transmission support the new high speed era. Up to 9+Ghz, Aptiv MiniCoax solution offers a complete system that can support a wide range of high speed applications. Based on robust Coaxial technology, Aptiv Mini Coax is a compact and reliable High Speed system, available in various footprint version to meet all customer expectations. Our miniaturized design offers up to 60% reduction in package size.

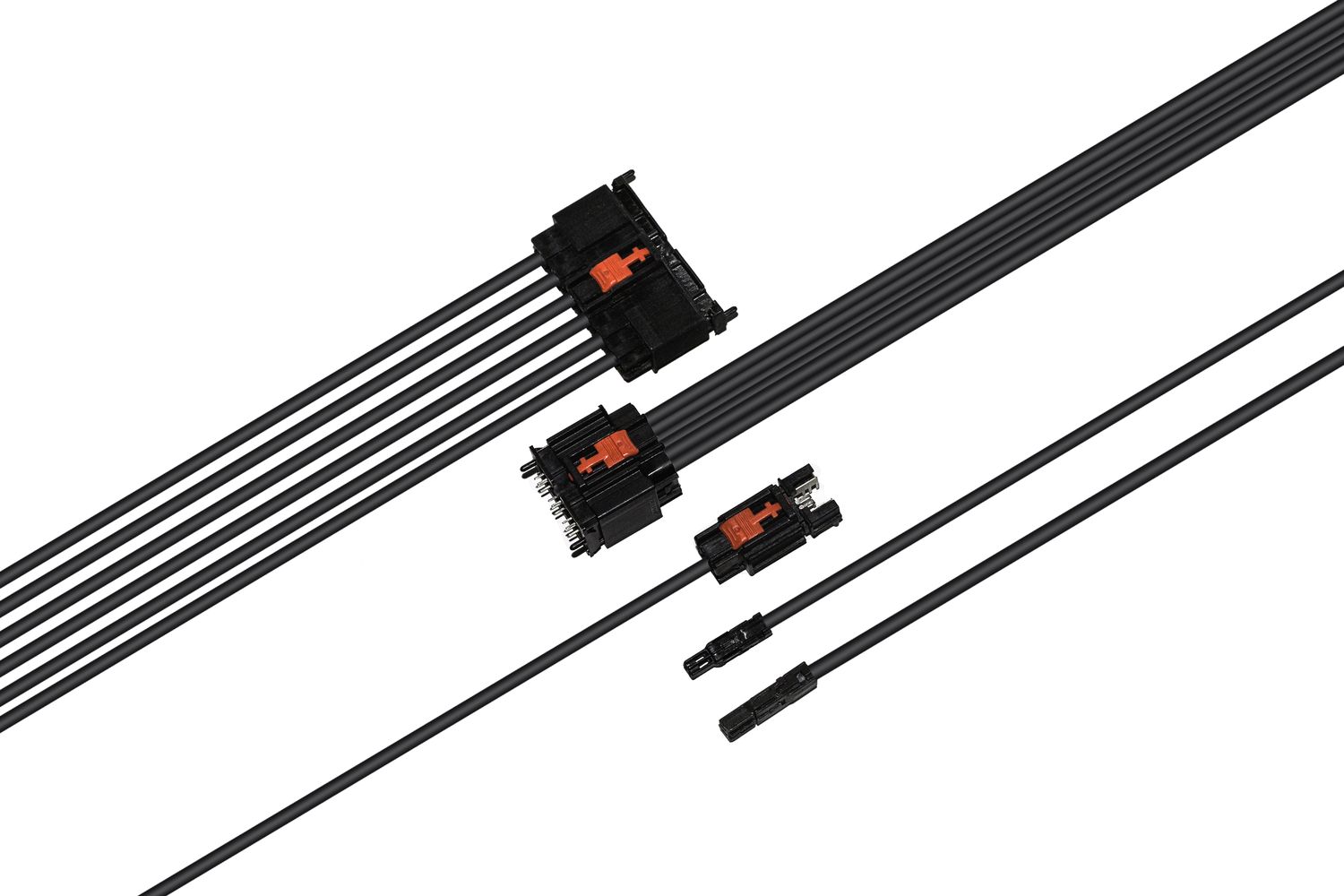

AMEC
Automatable Modular Ethernet Connectors
AMEC and AMEC+ automotive ethernet connection systems can scale from 100 Mbps to 1 Gbps within the same footprint. They can also be applied to other protocols such as A2B. Both series are offered as unsealed and sealed connectors. They feature a multifunctional modular design that features compact and ergonomic packaging and the flexibility to support multiple connector variants and integration into mixed connectors.

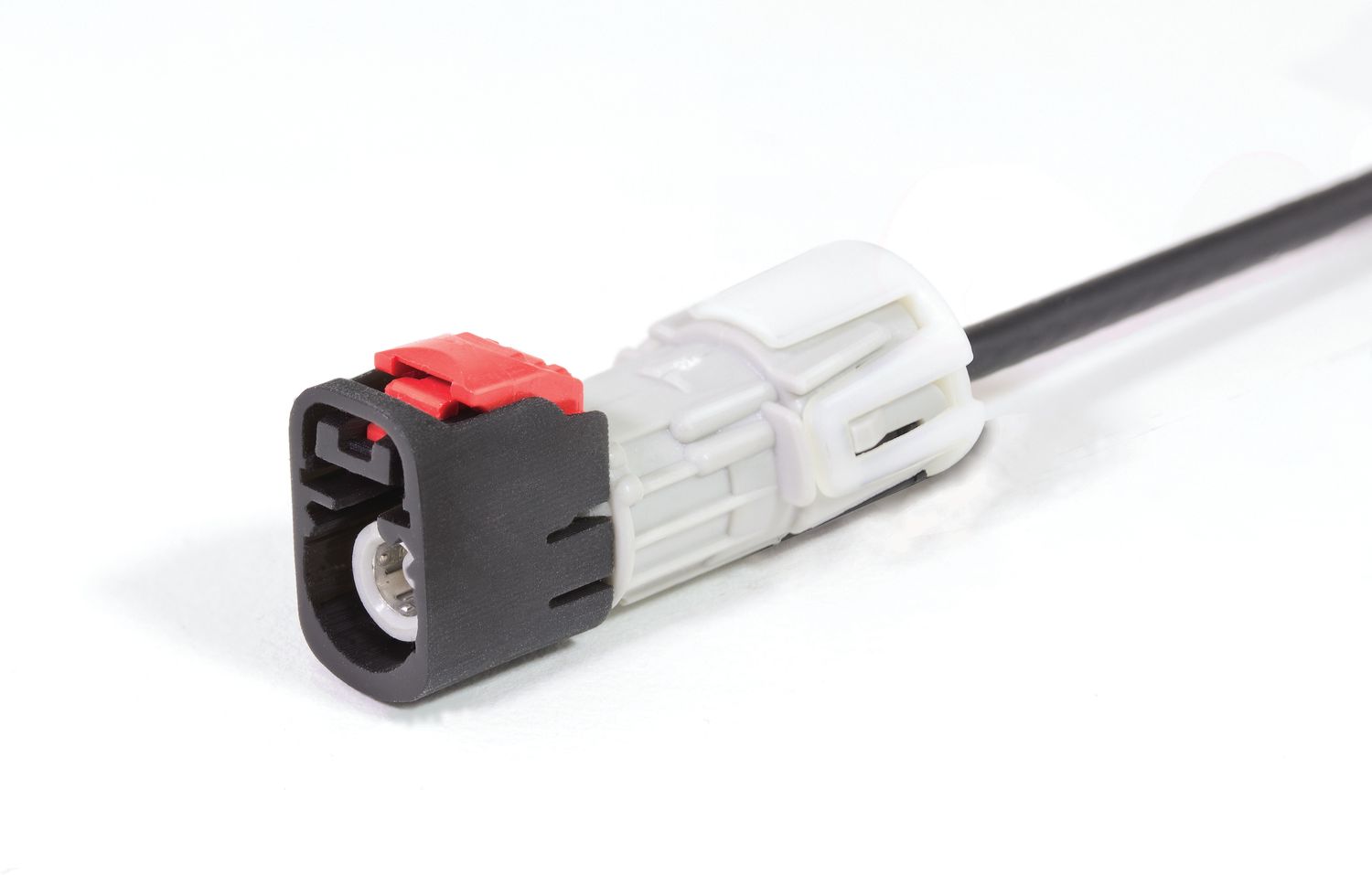

HSF
High Speed FAKRA
HSF High Speed FAKRA connectors support multi-gigabit data rates and power over coax for a simpler design. The HSF series supports a wide range of coaxial cable types and is offered in unsealed and sealed connector types. The connectors use cost effective stamped terminals and provide audible and tactile feedback when properly mated.
